Magic Mobility
Frontier V6 – Compact MWD Electric Wheelchair
Tailor your chair
The ultimate urban compact

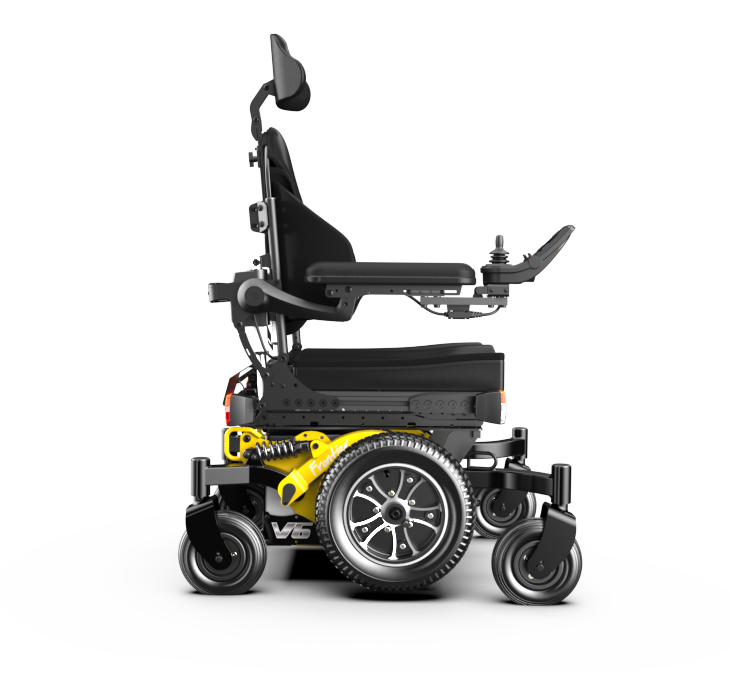

The Magic Mobility Frontier V6 Compact Mid Wheel Drive (MWD) powered wheelchair is the ultimate urban compact. Built on our adjustable and robust frame, and with mid-sized castor arms, you can take on challenging urban environments, kerbs and potholes with ease. Not the biggest, not the smallest, but just right. This ultimate compact will give you improved freedom in and around the streets.
- Drive mode: Mid wheel drive
- Motors: 68Nm Torque, 800W, Gear In Line
- Environment: City streets and roomy indoors
-
Manoeuverable, narrow and compact
-
Perfect blend of indoor and outdoor performance
-
Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.
-
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
Brochures and manuals
Magic Mobility produces world-class electric wheelchairs. Download your Frontier V6 Compact product brochure or Owner’s Manual here.
Technical specifications
| Features | Specifications |
|---|---|
| *Length of base | 965mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 655mm |
| Floor to top of seat pan height | 435mm |
| Turning circle (radius) of base | 530mm |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift and/or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear In Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea |
| Wheels | Urban 14"x3" black or grey (solid or pneumatic) |
| Castors | 200x50mm black or grey (solid or pneumatic) |
| Batteries | Gel |

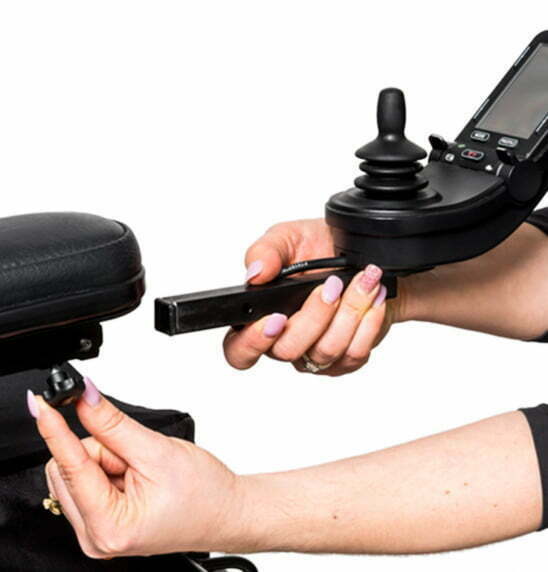

| Controller | Penny & Giles controller with LCD display (R-Net) |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
The transition to my Magic Mobility Frontier V6 Compact was a revelation...while you always want that little bit more speed, the Frontier is about as fast as you can safely drive. Ray Jordan, Melbourne Australia and Arizona USA
