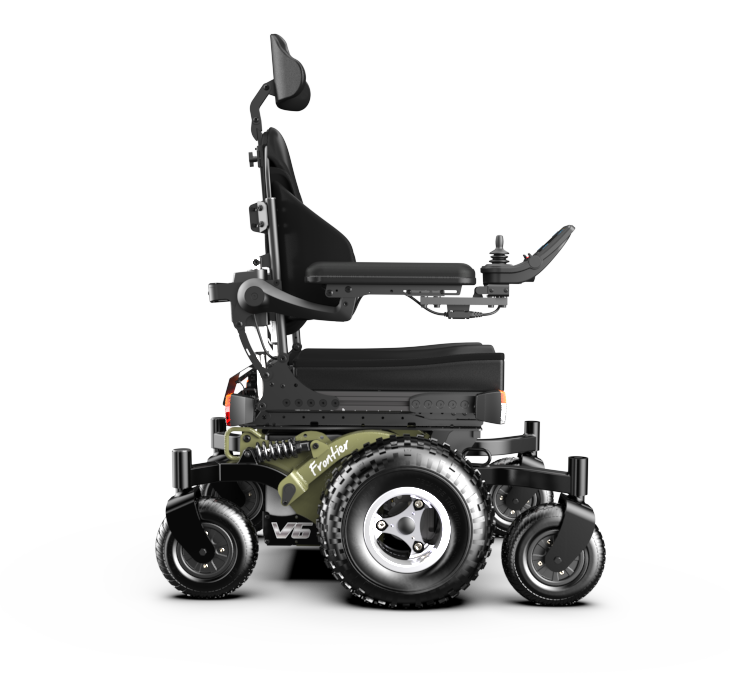

Frontier V6 – All-Terrain MWD Electric Wheelchair
Tailor your chair
For ultimate outdoor adventure
Our most popular powered wheelchair worldwide, the Magic Mobility Frontier V6 All Terrain Mid Wheel Drive (MWD) is ideal for the outdoors, yet its size makes it a capable indoor performer. The low-pressure tyres provide a smoother ride and the articulating front bogie arms provide increased climbing ability, providing tremendous off-road and kerb climbing capacity.
- Drive mode: Mid wheel drive
- Motors: 68Nm Torque, 800W, Gear In Line
- Environment: Adventurous and everyday off-road
-
Greatest off-road capability in the Frontier V6 range
-
Best Frontier V6 model for kerb climbing
The articulating front bogie arms are designed to make kerb climbing easier and help power through challenging, rugged terrain.
-
Exceptionally smooth ride due to the low pressure tyres and all wheel suspension
-
Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.
-
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
Brochures and manuals
Magic Mobility produces world-class electric wheelchairs. Download your Frontier V6 All Terrain product brochure or Owner’s Manual here.
Technical specifications
| Features | Specifications |
|---|---|
| *Length of base | 1050mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 710mm |
| Floor to top of seat pan height | 435mm |
| Turning circle (radius) of base | 580mm |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift and/or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear In Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea |
| Wheels - Off-road | 14" (145/70-6), black (note silver rims not available in the USA) |
| Wheels - Crossover | 14" (5.30/4.50-6) black or grey (pneumatic only) |
| Castors | Ø220mm (2.80/2.50-4), black or grey (solid or pneumatic) |
| Batteries | Gel |
| Controller | Penny & Giles controller with LCD display (R-Net) or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Seating and backrests | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
