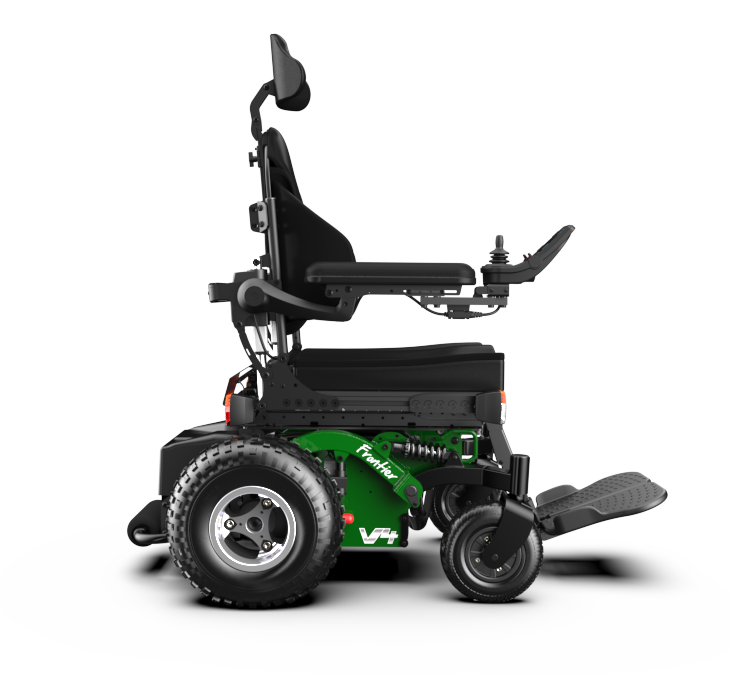

Frontier V4 – Off-road RWD Electric Wheelchair
Tailor your chair
Adventure Gained. Nothing Lost.
A powered wheelchair for those who know what they want. The thinking person’s chair, the V4 Rear Wheel Drive (RWD) is designed for those who are asking themselves the question about getting around the street or off-road, as well as indoors. Swap your Off-road tyres to either Crossover or Urban tyres to ensure you get the best powered wheelchair for your lifestyle.
- Drive mode: Rear wheel drive
- Motors: 86Nm Torque, 2 x 800W, Gear in Line
- Environments: Everyday off-road
-
Compact with great off-road capability and stability
-
Powerful kerb climbing
-
Great battery life and distance
-
Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.
-
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
Brochures and manuals
Magic Mobility produces world-class electric wheelchairs. Download your Frontier V4 RWD product brochure and Owner’s Manual here.
Technical specifications
| Features | Specifications |
|---|---|
| *Length of base | 930mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 710mm (670mm with Urban wheels) |
| Floor to top of seat pan height | 435mm |
| Turning circle (radius) of base | 520mm |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift and/or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear in Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea. |
| Wheels - Off-road | 14" black (note silver rims not available in the USA) |
| Wheels - Crossover | 14" (5.30/4.50-6) black or grey (pneumatic only) |
| Wheels - Urban | 14"x3" black or grey (solid or pneumatic) |
| Castors | Ø220mm (2.80/2.50-4), black or grey (solid or pneumatic) |
| Batteries | Gel |
| Controller | Penny & Giles controller with LCD display (R-net) or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
Our house has limited space, it has standard doorways, so I like the RWD chairs as they tend to be more compact than other chairs. Blair Garton, QLD Australia
